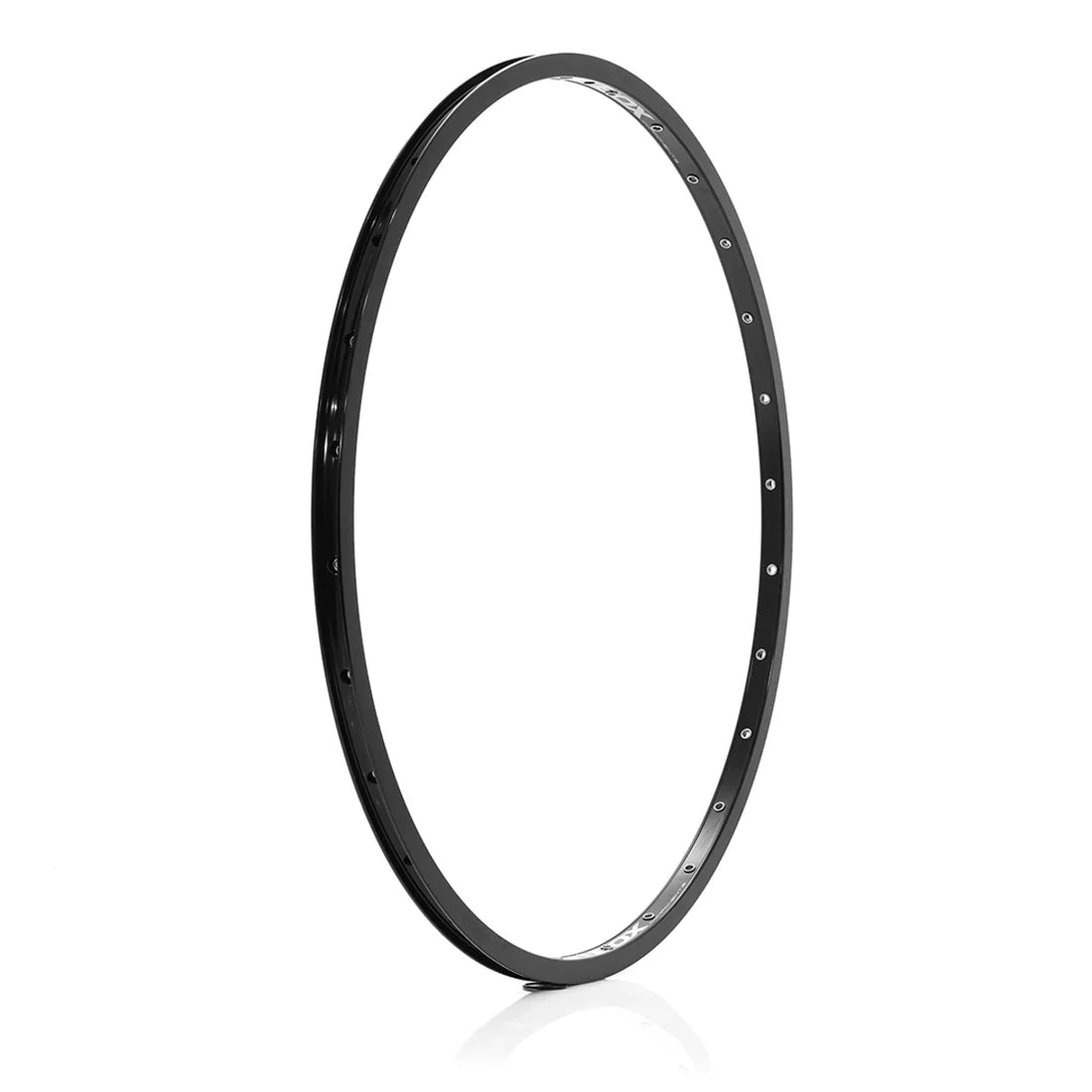

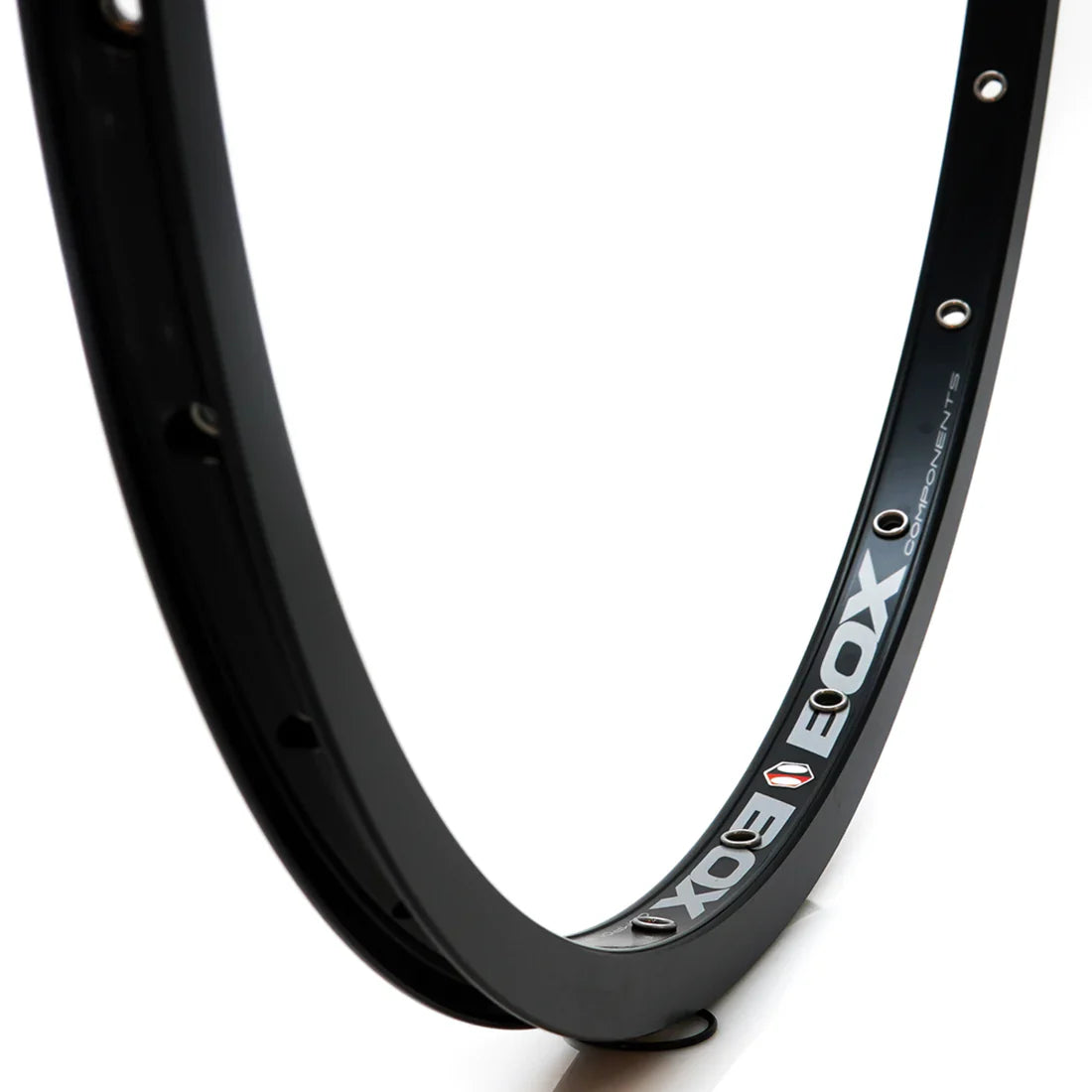

BOX ONE ALLOY BMX 24X1-1/8-3/8 28-HOLE RIM

The Box One Rims feature a double-walled, eyeleted, low profile design optimized to be both lightweight and durable! We offer these in both brake and brake-less variants. You’ll have a clean and sleek wheel build with rim brake tracks as needed.

Low Profile Design
Optimized Internal Geometry
Machined Brake Track

Brake-less variants do not have a brake track and therefore are not designed to be used with rim brakes! They are to be used as front or rear rims with disc brakes ONLY!

Material: 6061-T6 Aluminum
Process: Extruded and Rolled
Hole Drilling: 28
Seam: Pinned
Valve Hole: Presta

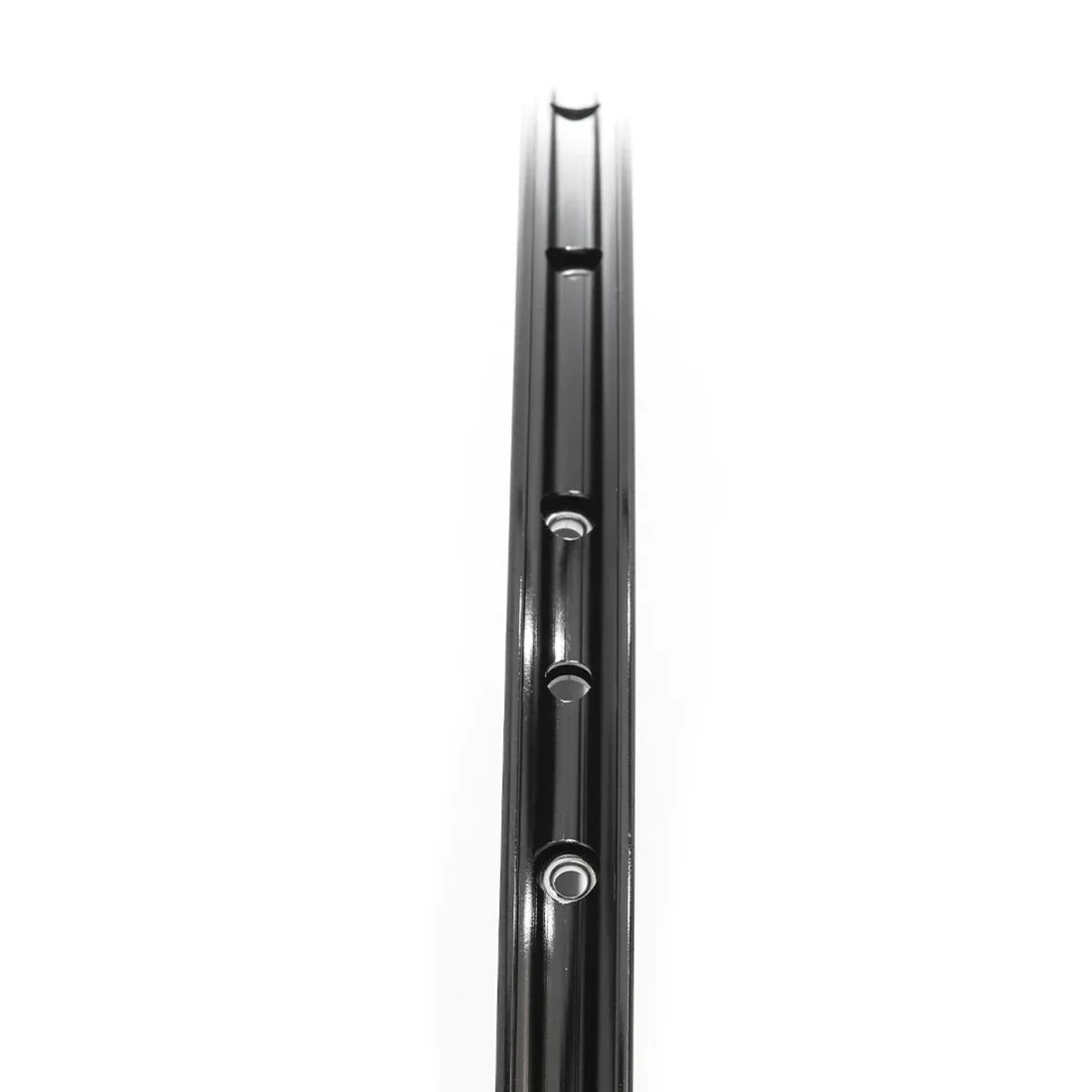

Hardware: Stainless Steel Eyelets
Finish: Matte Black Anodized with Decals
Compatibility:
• Tubeless: Not Compatible
• Brake:
• Rear: Brake
• Front: Brake-Less Profiles
• Tire Size: 24 x 1" to 1-3/8"
Size:
• Diameter: 24”
• External Width:
• Front: 17.5mm
• Rear: 18mm
• Internal Width: 22.5mm
• Height:
• Front: 15mm
• Rear: 14.5mm
• ERD:
• Front: 512mm
• Rear: 516mm
• ISO (E.T.R.T.O): 451
Weight:
• Front: 287g/10.1oz
• Rear: 343g/12.1oz
