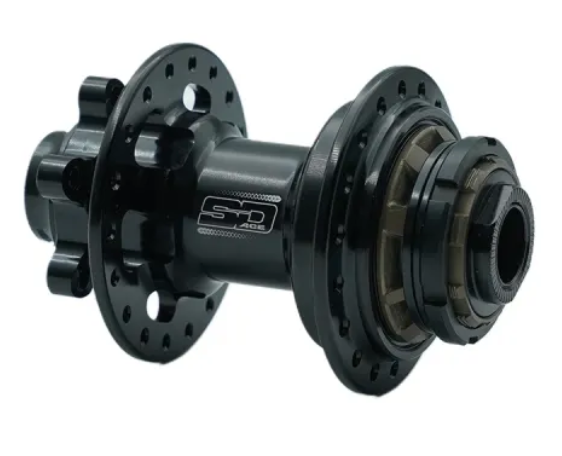

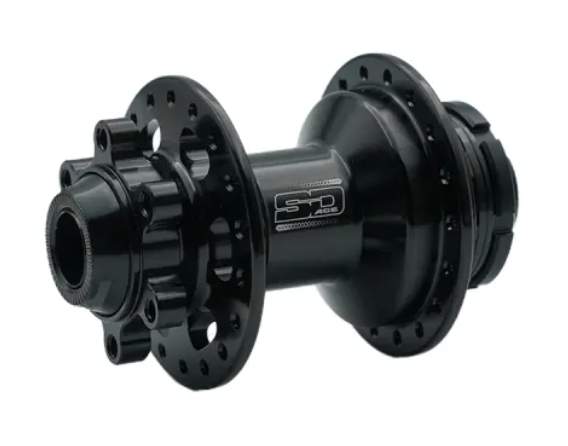

SD Ace V2 HSX Rear Cassette Disc Hub 28h

SD Ace V2 Rear Cassette Disc Hub

Experience unmatched performance and reliability with the SD Ace V2 Rear Cassette Disc Hub — engineered for BMX racers who demand lightweight performance, quick engagement, and dependable durability. Built using high-grade materials and refined through extensive testing, the Ace V2 delivers smooth power transfer and responsive acceleration for modern BMX race applications.

Designed specifically for riders seeking a lightweight and reliable disc hub, the SD Ace V2 combines optimized flange geometry, fast engagement, and precision bearing support while maintaining an impressively low weight of only 300g.

Specifications:

• Weight:
  • 300g
• Hub Type:
  • Rear Cassette Disc Hub
• Total Length:
  • 110mm
• Distance Flange to Outside Non-Drive Side:
  • 26mm
• Distance Flange to Outside Drive Side:
  • 25mm
• Flange Diameter Non-Drive Side:
  • 58mm
• Flange Diameter Drive Side:
  • 58mm
• Distance Flange to Disc:
  • 7.5mm

Bearings:

• 18-30-7 RS bearings
  • Axle and cassette body

Features:

• Lightweight BMX race cassette hub
• Fast engagement for immediate acceleration response
• Disc brake compatible
• Optimized flange geometry for strong wheel builds
• Smooth and reliable bearing performance
• Excellent balance of strength and low rotational weight
• Designed for high-performance BMX racing applications
