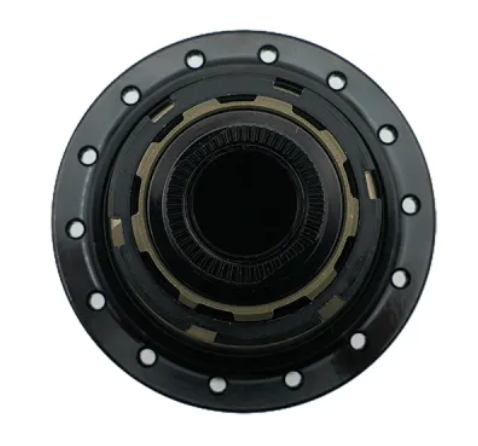

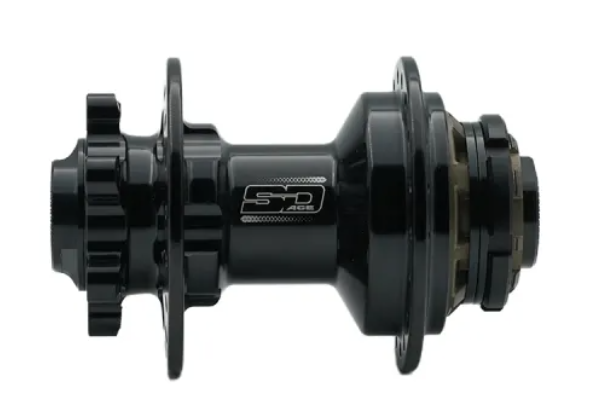

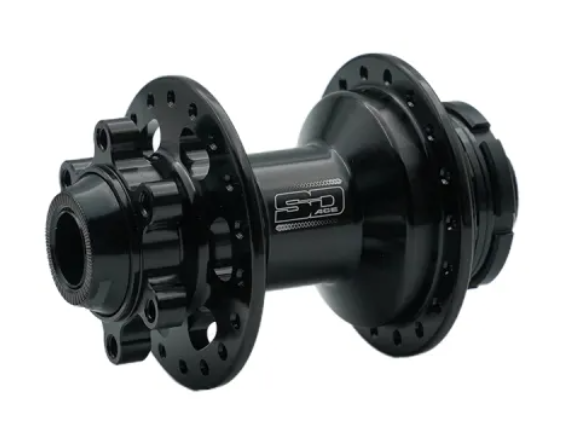

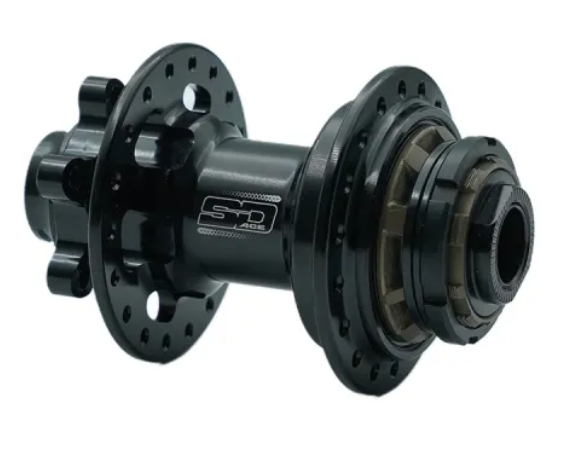

SD Ace V2 HSX Rear Cassette Disc Hub 36h

Experience unmatched performance and reliability with the SD Ace V2 HSX Rear Cassette Disc Hub — engineered for riders who demand lightweight performance, precision engagement, and smooth power transfer on every lap. Built from high-grade materials and refined through rigorous testing, the Ace V2 delivers an ideal balance of durability, stiffness, and acceleration response for modern BMX race applications.

The SD Ace V2 HSX cassette hub is an excellent choice for riders seeking a lightweight and dependable rear disc hub with fast engagement and optimized wheel geometry. At only 300g, it keeps rotational weight low while maintaining excellent strength and reliability under heavy sprint loads.

Specifications:

• Weight:
  • 300g
• Hub Type:
  • Rear Cassette Disc Hub
• Total Length:
  • 110mm
• Distance Flange to Outside Non-Drive Side:
  • 26mm
• Distance Flange to Outside Drive Side:
  • 25mm
• Flange Diameter Non-Drive Side:
  • 58mm
• Flange Diameter Drive Side:
  • 58mm
• Distance Flange to Disc:
  • 7.5mm

Bearings:

• 18-30-7 RS Bearings
  • Axle and cassette body

Features:

• Lightweight BMX race cassette hub
• Fast engagement for responsive acceleration
• Disc brake compatible
• Optimized flange spacing for strong wheel builds
• Smooth and reliable bearing performance
• Excellent balance of low weight and durability
• Designed specifically for high-performance BMX racing
